SUNRISE HOPPERS

14' hopper regular.png
14' Hopper
24' hopper 2.png
19' Hopper
24' Hopper (Heavy Duty)

Standard on all Hoppers

  • 4x4 HSS Legs welded to perimeter ring
  • 8 legs on 14'-17' hopper
  • 12 legs on18'-22' hoppers
  • 14x2 legs on a 24'
  • 16x2 legs on a 27'
  • Custom slotted holes to receive Grain Bin
  • Angle Bracing from perimeter ring to legs for additional racking support
  • Angle iron bracing from center to each leg
  • Angle iron bracing from center to each leg
  • Rack and Pinion Gate c/w with crank

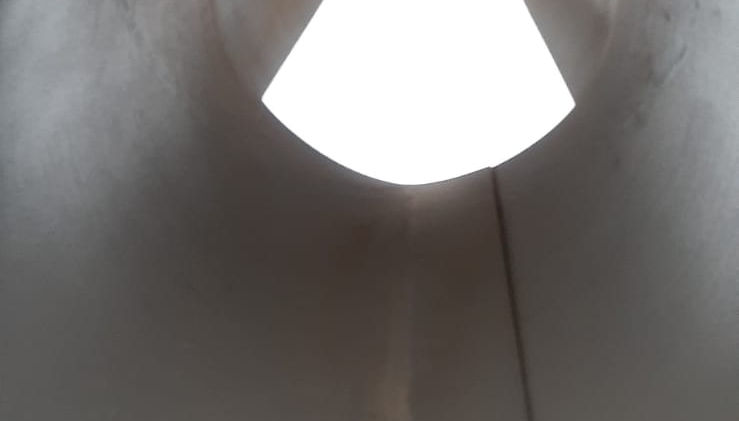

  • 18x18 inspection access
  • Custom built to fit any size and style of Bin
  • Primed and Painted on the Exterior
  • Primed on the Interior
  • All Hoppers Engineered
  • Skids come standard on all hoppers

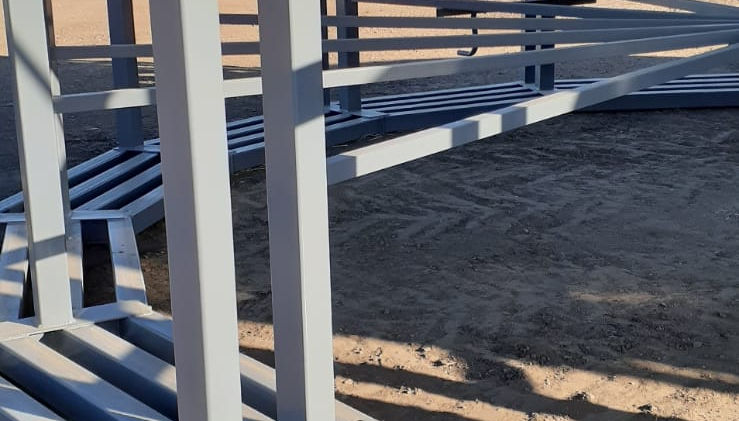

Hopper Skids

Double
Triple
Quadruple
  • Skids are standard on all Hoppers
  • Skids and welded to the Hopper legs
  • Can be ordered with no skid
  • Double skid on 14'-17' Hoppers
  • Triple Skid on 18'-22' Hoppe
  • Quadruple Skid on 23' + Hopper

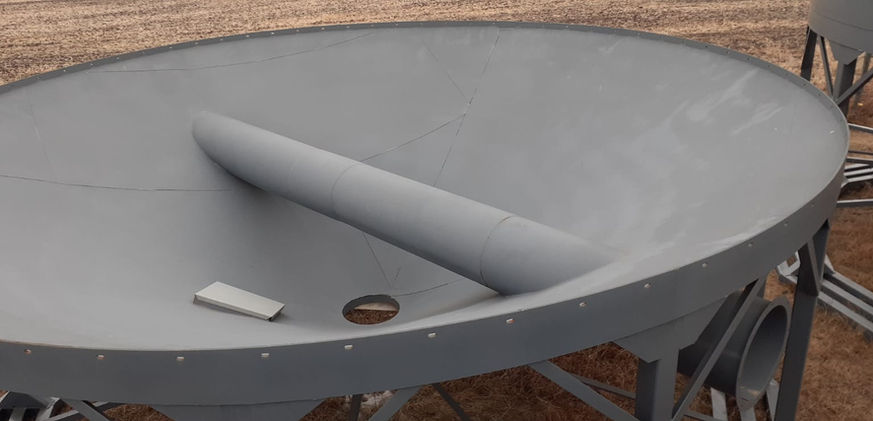

Aeration tube  system

  • SUNRISE horizontal tupe 18" & 24"
  • 18" Areation tube standard 14-19'

Airmaster aeration system

  • SUNRISE Vertical Airmaster Aeration 30''W X 4'H up to 3500 -10000 bu.
Anchor 3

Smooth Extension ring

60" Extensions from 14'-19'

14' Hopper
WhatsApp Image 2021-10-21 at 2.14.08 PM.jpeg

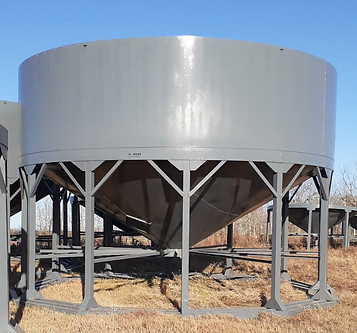

19' Hopper
WhatsApp Image 2021-10-21 at 2.14.01 PM.jpeg
